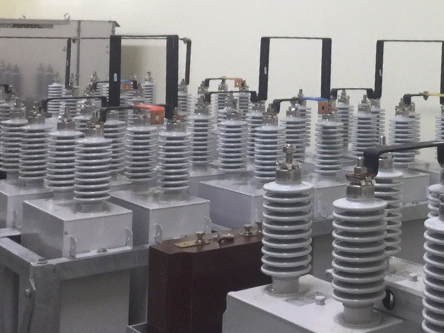

The V-CAP is a reactive compensation system that is built to provide transient-free switching. Its high capacity ensures that it can handle even the most demanding loads, while its easy integration feature allows for seamless integration into your existing compensation systems. The V-CAP is designed for condition-based maintenance, which means that it will only require maintenance when necessary, saving you time and money.

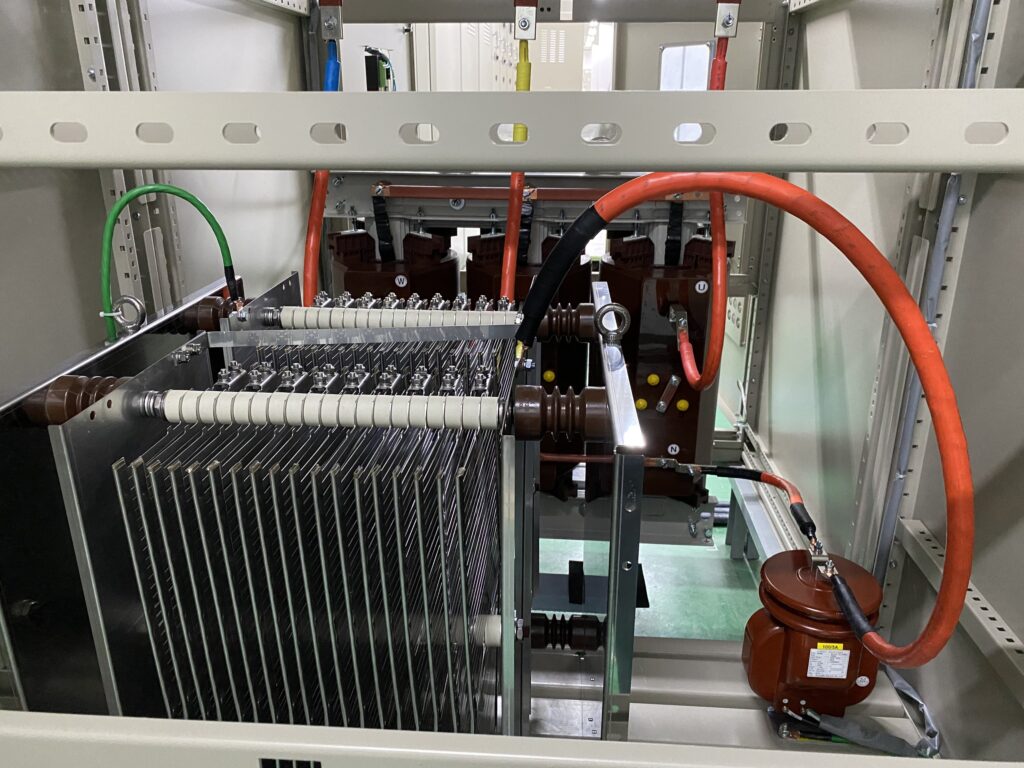

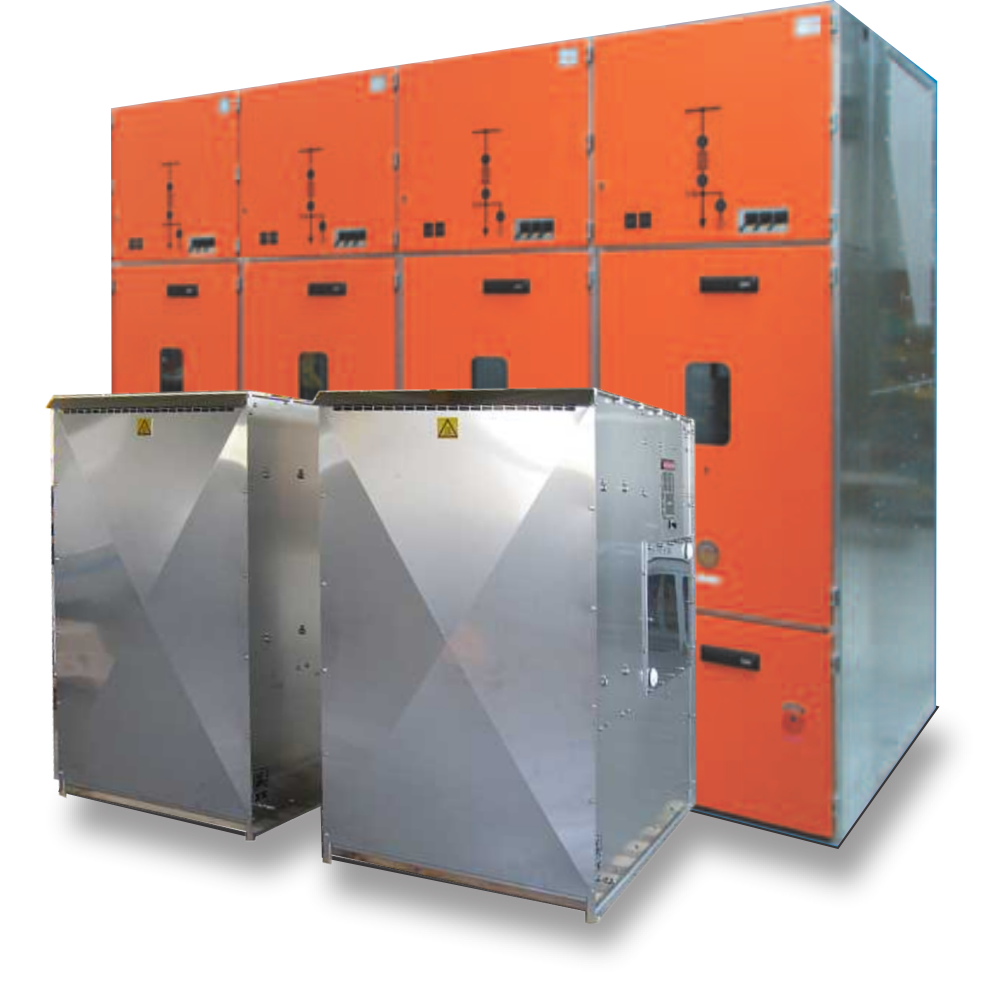

The V-Resistor is a resistive load system that is built to withstand high temperatures, making it ideal for use in a variety of applications. Its flexible switching feature allows for easy integration into your existing systems, while its durable material ensures that it will last for years to come. The V-Resistor is made from a high melting point alloy, which means that it can withstand even the most extreme conditions.

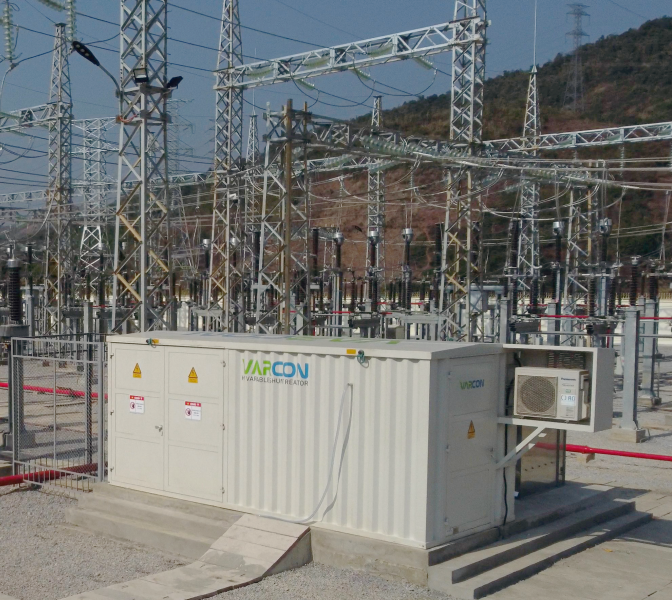

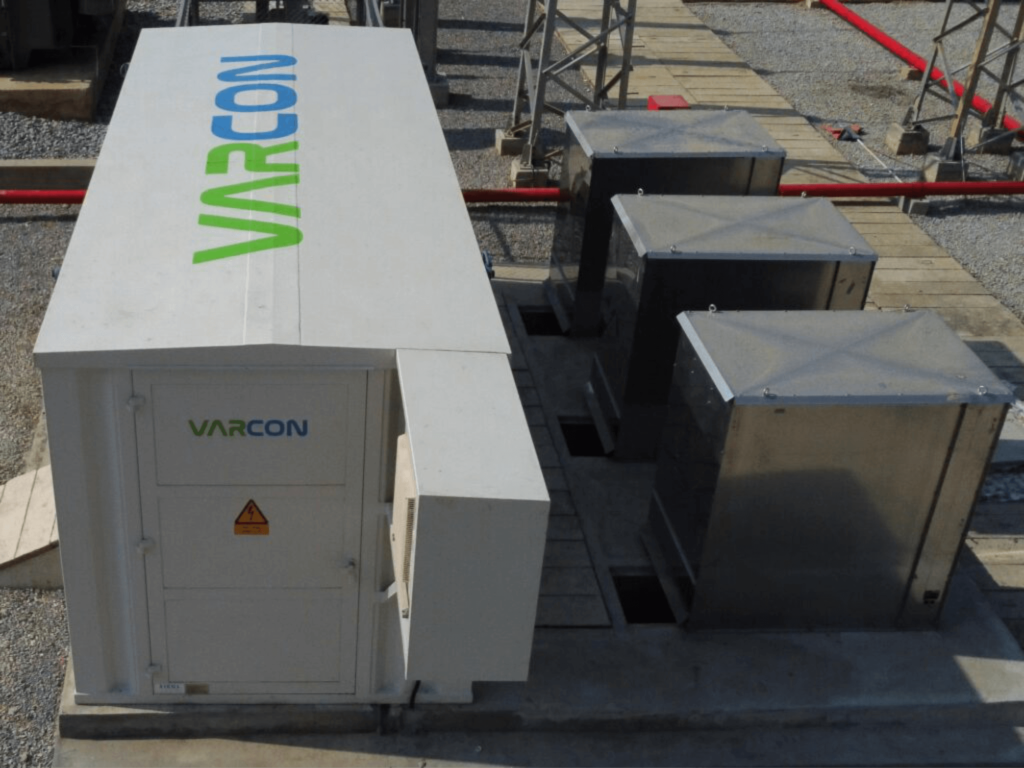

VARCON V-CAP offer many features and benefits over traditional open air (stack-rack) capacitor banks. When all costs are considered, including engineering, integration, site preparation, installation, maintenance, and liability, the Metal-Enclosed Capacitor Bank Design is the favorable choice.
High customizability allows optimal benefits for every customer
Fast, easy installation. Reduced startup and commissioning cost. Lower site preparation cost and associated risk.
Key components are protected from external contaminants. More likely to be maintained as equipment is at ground level.
Reduces kVA billing and power factor penalties. Improves voltage profile. Release system capacity.
Fixed, Switched, Single Step, Multiple Step
2.4kV – 38kV
50 Hertz | 60 Hertz
0.5MVAR – 100 MVAR
16kA – 61kA
60kV – 200 KV
-50°C to +55°C
(NEMA): 1, 3R, 4X, 12
(IEC): IP10, IP14, IP56, IP52
Arc Flash Mitigation: Passive & Active
Hazardous Locations: NEC Class 1 & 2, Div. II
Fixed, Switched, Single Step, Multiple Step
3.3kV – 12kV
50 Hertz | 60 Hertz
0.5MW – 20 MW
12kV – 75 KV
-40°C to +65°C
Mining (copper, gold, diamond, oil sands, limestone, lithium, rare earth metals)
• Renewable energy (wind & solar power )
• Oil/Gas, Petro-Chemical
• Electric Utilities (large IOU’s, electric cooperatives, municipalities)
• Steel
• Pulp & Paper
• Institutions (hospitals, universities, military bases, data centers, financial institutions)
• Private Label – Supplier of product to nearly all of the “majors”
• Others: Semiconductor, scrap recycling, pharma, waste water
